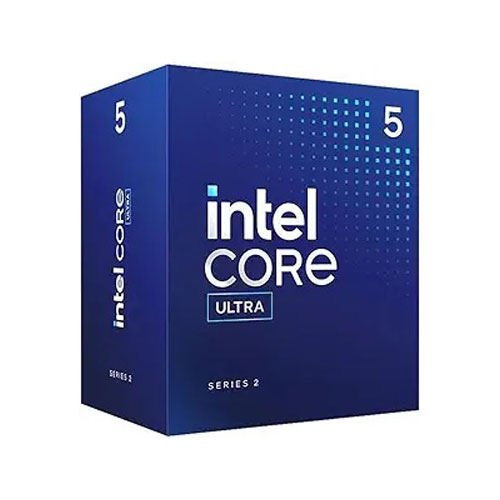

INTEL CORE ULTRA 5 PROCESSOR 235 24M Cache Up To 5 GHz(14 Threads , 14 Cores )
Roll over image to zoom in
Rs:88,500.00
Rs: 99,120.00
Installment Plans
Monthly Rs.
4,240.63
Monthly Rs.
4,388.13
Monthly Rs.
8,333.75
Monthly Rs.
3,220.42
Monthly Rs.
4,240.63
Monthly Rs.
3,441.67
or 3 X Rs: 33,040.00 with
03 Years Warranty
Total Cores
14
# of Performance-cores
6
# of Efficient-cores
8
Total Threads
14
Max Turbo Frequency
5 GHz
Performance-core Max Turbo Frequency
5 GHz
Efficient-core Max Turbo Frequency
4.4 GHz
Performance-core Base Frequency
3.4 GHz
Efficient-core Base Frequency
2.9 GHz
Cache
24 MB Intel® Smart Cache
Total L2 Cache
26 MB
Processor Base Power
65 W
Maximum Turbo Power
121 W
Intel® Deep Learning Boost (Intel® DL Boost) on CPU
Yes
AI Software Frameworks Supported by CPU
OpenVINO™, WindowsML, DirectML, ONNX RT, WebNN
CPU Lithography
TSMC N3B
Supplemental Information
Marketing Status
Launched
Launch Date
Q1’25
Embedded Options Available
No
Use Conditions
PC/Client/Tablet, Workstation
Datasheet
VIEW NOW
Memory Specifications
Max Memory Size (dependent on memory type)
256 GB
Memory Types
Up to DDR5 6400 MT/s
Max # of Memory Channels
2
ECC Memory Supported ‡
Yes
GPU Specifications
GPU Name‡
Intel® Graphics
Graphics Base Frequency
300 MHz
Graphics Max Dynamic Frequency
2 GHz
GPU Peak TOPS (Int8)
6
Graphics Output
DP2.1 UHBR20, HDM2.1 FRL 12GHz, eDP1.4b
Xe-cores
3
Max Resolution (HDMI)‡
4K @ 60Hz (HDMI 2.1 TMDS) 8K @ 60Hz (HDMI2.1 FRL)
Max Resolution (DP)‡
8K @ 60Hz
Max Resolution (eDP – Integrated Flat Panel)‡
4K @ 60Hz
DirectX* Support
12
OpenGL* Support
4.5
OpenCL* Support
3
Intel® Quick Sync Video
Yes
# of Displays Supported ‡
4
Device ID
0x7D67
Intel® Deep Learning Boost (Intel® DL Boost) on GPU
Yes
NPU Specifications
NPU Name‡
Intel® AI Boost
NPU Peak TOPS (Int8)
13
Sparsity Support
Yes
Windows Studio Effects Support
Yes
AI Software Frameworks Supported by NPU
OpenVINO™, WindowsML, DirectML, ONNX RT, WebNN
Expansion Options
Direct Media Interface (DMI) Revision
4
Max # of DMI Lanes
8
Intel® Thunderbolt™ 4
Yes
Scalability
1S Only
PCI Express Revision
5.0 and 4.0
PCI Express Configurations ‡
Up to 1×16+2×4, 2×8+2×4,
1×8+4×4
1×8+4×4
Max # of PCI Express Lanes
24
Package Specifications
Sockets Supported
FCLGA1851
Thermal Solution Specification
PCG 2022C
Max Operating Temperature
105 °C
Additional information
| Weight | 15 kg |
|---|
