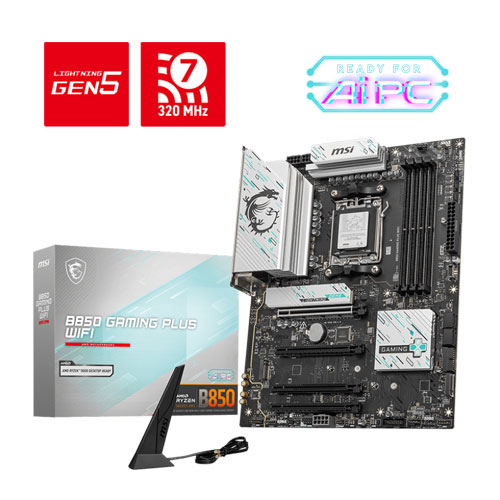

MSI B850 Gaming Plus (Wi-Fi) DDR5 Motherboard ( 3 YEARS WARRANTY )
Roll over image to zoom in
Rs:94,000.00
Rs: 105,280.00
Installment Plans
Monthly Rs.
4,504.17
Monthly Rs.
4,660.83
Monthly Rs.
8,851.67
Monthly Rs.
3,420.56
Monthly Rs.
4,504.17
Monthly Rs.
3,655.56
or 3 X Rs: 35,093.33 with
Description :
| Chipset | AMD B850 | |
| CPU | Supports AMD Ryzen™ 9000/ 8000/ 7000 Series Desktop Processors | |
| Socket AM5 | ||
| Memory | 4x DDR5 UDIMM, Maximum Memory Capacity 256GB | |
| Memory Support DDR5 8200 – 5600 (OC) MT/s / 5600 – 4800 (JEDEC) MT/s | ||
| Ryzen™ 9000 Series Processors max. overclocking frequency: | ||
| • 1DPC 1R Max speed up to 8200+ MT/s | ||
| • 1DPC 2R Max speed up to 6400+ MT/s | ||
| • 2DPC 1R Max speed up to 6400+ MT/s | ||
| • 2DPC 2R Max speed up to 4800+ MT/s | ||
| Supports AMD POR Speed and JEDEC Speed | ||
| Supports Memory Overclocking and AMD EXPOTM | ||
| Supports Dual-Channel mode | ||
| Supports Non-ECC, Un-buffered memory | ||
| Supports CUDIMM, Clock Driver bypass mode only* | ||
| Onboard Graphics | 1x DisplayPort | |
| Support DisplayPort 1.2, maximum resolution of 4K 60Hz* | ||
| Slot | 4x PCI-E x16 slot | |
| PCI_E1 Gen PCIe 5.0 supports up to x16 (From CPU) | ||
| PCI_E2 Gen PCIe 3.0 supports up to x1 (From Chipset) | ||
| PCI_E3 Gen PCIe 4.0 supports up to x4 (From Chipset) | ||
| PCI_E4 Gen PCIe 3.0 supports up to x1 (From Chipset) | ||
| PCI_E1 slot | ||
| • Supports PCIe 5.0 x16 (For Ryzen™ 9000/ 7000 Series processors) | ||
| • Supports PCIe 4.0 x8 (For Ryzen™ 8700/ 8600/ 8400 Series processors) | ||
| • Supports PCIe 4.0 x4 (For Ryzen™ 8500/ 8300 Series processor) | ||
| * PCI_E2, PCI_E3 & PCI_E4 share the bandwidth, | ||
| PCI_E3 slot will run at x2 speed when installing devices in the PCI_E2 or PCI_E4 slot. | ||
| Audio | Realtek® ALC897 | |
| 7.1-Channel High Definition Audio | ||
| Storage | 3x M.2 | |
| M.2_1 Source (From CPU) supports up to PCIe 5.0 x4 , supports 2280/2260 devices | ||
| M.2_2 Source (From CPU) supports up to PCIe 4.0 x4 , supports 22110/2280 devices | ||
| M.2_3 Source (From Chipset) supports up to PCIe 4.0 x2 , supports 2280/2260 devices | ||
| 4x SATA 6G | ||
| M2_1 slot | ||
| • Supports up to PCIe 5.0 x4 (For Ryzen™ 9000/ 7000 Series processors) | ||
| • Supports up to PCIe 4.0 x4 (For Ryzen™ 8000 Series processors) | ||
| *Please refer to the manual for M.2 SSD heatsink restrictions. | ||
| RAID | Supports RAID 0 and RAID 1 for M.2 NVMe storage devices | |
| USB | 4x USB 2.0 (Rear) | |
| 4x USB 2.0 (Front) | ||
| 1x USB 5Gbps Type A (Rear) | ||
| 4x USB 5Gbps Type A (Front) | ||
| 1x USB 5Gbps Type C (Front) | ||
| 1x USB 10Gbps Type A (Rear) | ||
| 2x USB 10Gbps Type C (Rear) | ||
| LAN | Realtek® 8126VB 5G LAN | |
| Internal IO | 1x Power Connector(ATX_PWR) | |
| 2x Power Connector(CPU_PWR) | ||
| 1x Power Connector(PCIE_PWR 8pin) | ||
| 1x CPU Fan | ||
| 1x Combo Fan (Pump_Sys Fan) | ||
| 4x System Fan | ||
| 1x EZ Conn-header (JAF_1) | ||
| 2x Front Panel (JFP) | ||
| 1x Chassis Intrusion (JCI) | ||
| 1x Front Audio (JAUD) | ||
| 1x Com Port (JCOM) | ||
| 1x Tuning Controller connector(JDASH) | ||
| 3x Addressable V2 RGB LED connector (JARGB_V2) | ||
| 1x RGB LED connector(JRGB) | ||
| 1x TPM pin header(Support TPM 2.0) | ||
| 4x USB 2.0 ports | ||
| 4x USB 5Gbps Type A ports | ||
| 1x USB 5Gbps Type C ports | ||
| WIRELESS LAN & BLUETOOTH | Wi-Fi 7 Solution | |
| The Wireless module is pre-installed in the M.2 (Key-E) slot | ||
| Supports MU-MIMO TX/RX, 2.4GHz/ 5GHz/ 6GHz* (320MHz) up to 5.8Gbps | ||
| Supports 802.11 a/ b/ g/ n/ ac/ ax/ be | ||
| Supports Bluetooth® 5.4**, MLO, 4KQAM | ||
| * 6GHz band support may depend on every country’s regulations. | ||
| and Wi-Fi 7 will be ready in Windows 11 version 24H2. | ||
| ** The Bluetooth version may be updated, | ||
| please refer to the Wi-Fi chipset vendor’s website for details. | ||
| Bluetooth 5.4 will be ready in Windows 11 version 24H2. | ||
| OPERATING SYSTEM | Support for Windows® 11 64-bit | |
| PCB Info | ATX | |
| 243.84mmx304.8mm |
Additional information
| Weight | 15 kg |
|---|
