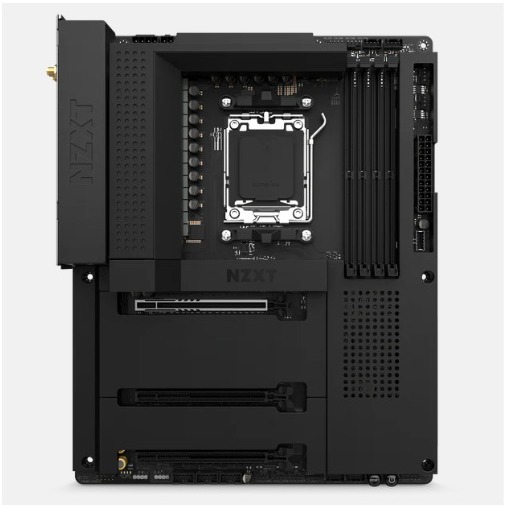

NZXT N7 B650E MOTHERBOARD – AMD B650 CHIPSET WITH WI-FI AND BLACK COVER(3 YEARS WARRANTY)
Roll over image to zoom in
Rs:100,000.00
Rs: 112,000.00
This product is currently on backorder and cannot be purchased at this time.Please contact us
Installment Plans
Monthly Rs.
4,791.67
Monthly Rs.
4,958.33
Monthly Rs.
9,416.67
Monthly Rs.
3,638.89
Monthly Rs.
4,791.67
Monthly Rs.
3,888.89
| CPU |
| AMD Socket AM5 Ryzen™ 7000 Series Processors:Supported |
| CHIPSET |
| AMD:B650 |
| MEMORY |
| DIMM Slots:4, DDR5 only |
| Max Memory Support:128GB |
| Memory Architecture:Dual-Channel |
| OC Frequency:DDR5 Non-ECC, Un-buffered Memory up to 6000+ (OC). |
| Please refer to Memory QVL on NZXT’s website (www.nzxt.com) for more information. |
| Extreme Memory Profile (XMP):Supported |
| EXTended Profiles for Overclocking (EXPO):Supported |
| EXPANSION SLOTS |
| PCIe 5.0 ×16 slot (PCIEX16_1), supports ×16 mode:1 (Supports NVMe SSD as boot disks) |
| PCIe 4.0 ×16 slots (PCIEX16_2 and PCIEX16_3), support ×2 mode:2 (Supports NVMe SSD as boot disks) |
| M.2 Socket (Key E), supports Type 2230 Wi-Fi/BT PCIe Wi-Fi module:1 |
| INTEGRATED GRAPHICS |
| Integrated AMD RDNA™ 2 graphics:Supported |
| HDMI 2.1 TMD Compatible:1 |
| HDR:Supported |
| HDCP 2.3:max. resolution up to 4K 60Hz |
| STORAGE |
| M.2_1, Type 2242/2260/2280 (PCIe 5.0 ×4 mode):1 |
| M.2_2, Type 2242/2260/2280 (PCIe 4.0 ×4 mode):1 |
| M.2_3, Type 2242/2260/2280 (PCIe 4.0 ×2 mode):1 |
| SATA 6Gb/s ports:4 |
| RAID 0/1/10 for SATA storage devices:Supported |
| RAID 0/1/10 for M.2 NVMe storage devices:Supported |
| NVMe SSD as boot disks:Supported |
| LAN |
| Realtek®:RTL8125BG 2.5G LAN |
| WIRELESS |
| 802.11ax Wi-Fi 6E Module:Supported |
| Bluetooth:V5.2 |
| AUDIO |
| Realtek®:ALC1220 Codec |
| REAR I/O |
| Wireless antenna SMA connectors:2 |
| HDMI™ port:1 |
| USB 2.0:2 |
| USB 3.2 Gen 2 Type-C port:1 |
| USB 3.2 Gen 2 ports:2 |
| USB 3.2 Gen 1 ports:4 |
| Clear CMOS button:1 |
| BIOS Flashback button:1 |
| LAN (RJ45) port:1 |
| Audio jacks:5 |
| Optical S/PDIF Out port:1 |
| INTERNAL I/O |
| 24-pin ATX power connector:1 |
| 8+4-pin ATX 12V power connector:1 |
| 4-pin CPU_FAN connector:1 |
| 4-pin AIO_PUMP connector:1 |
| 4-pin SYS_FAN connectors:5 |
| NZXT RGB LED connectors:4 |
| 5V ARGB LED connector:2 |
| USB 2.0 header (Up to 6 USB 2.0 ports):3 |
| USB 3.2 Gen1 header (Up to 4 USB 3.2 Gen 1 ports):2 |
| USB 3.2 Gen2x2 front panel header (For USB Type-C):1 |
| Front panel audio connector:1 |
| Power button:1 |
| Reset button:1 |
| POST LEDs:4 |
| GENERAL |
| System Requirements:NZXT CAM software requires Microsoft Windows® 11/10 operating system. |
| Form Factor:ATX |
| Certifications:FCC, CE, WHQL, ErP/EuP Ready |
| Model Number:N7-B65XT-W1 (White) / N7-B65XT-B1 (Black) |
| UPC:810074842877 (White) / 810074842884 (Black) |
| EAN:5056547202815 (White) / 5056547202822 (Black) |
Additional information
| Weight | 10 kg |
|---|
