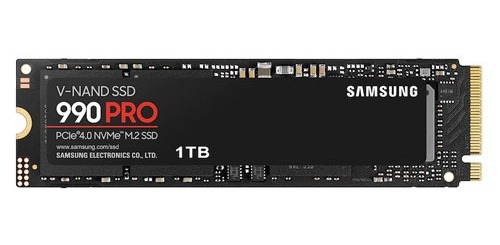

SAMSUNG 990 PRO 1TB PCIe 4.0 BRAND NEW NVMe SSD

03  Years Warranty

• General Feature
  Application

  Client PCs, Game Consoles

  Capacity

  2,000GB (1GB=1 Billion byte by IDEMA) * Actual usable capacity may be less (due to formatting, partitioning, operating system, applications or otherwise)

  Interface

  PCIe Gen 4.0 x4, NVMe 2.0

  Dimension (WxHxD)

  80 x 22 x 2.3 mm

  Weight

  Max 9.0g Weight

  Storage Memory

  Samsung V-NAND 3-bit MLC

  Controller

  Samsung 2GB Low Power DDR4 SDRAM
• Performance
  Random Read (4KB ,QD32)

  Up to 1,400,000 IOPS * Performance may vary based on system hardware & configuration

  Random Write (4KB ,QD32)

  Up to 1,550,000 IOPS * Performance may vary based on system hardware & configuration

  Random Read (4KB ,QD1)

  Up to 22,000 IOPS * Performance may vary based on system hardware & configuration

  Random Write (4KB ,QD1)

  Up to 80,000 IOPS * Performance may vary based on system hardware & configuration
• Type
  Product Type

  990 PRO

  Interface

  PCIe Gen 4.0 x4, NVMe 2.0

  Usage Application

  Client PCs, Game Consoles
• Storage
  Capacity

  2,000GB (1GB=1 Billion byte by IDEMA) * Actual usable capacity may be less (due to formatting, partitioning, operating system, applications or otherwise)
• Key Features
  Sequential Read Speed

  Up to 7,450 MB/s * Performance may vary based on system hardware & configuration

  Sequential Write Speed

  Up to 6,900 MB/s * Performance may vary based on system hardware & configuration

  Cache Memory

  Samsung 2GB Low Power DDR4 SDRAM

  Trim Support

  Supported

  S.M.A.R.T. Support

  Supported

  GC (Garbage Collection)

  Auto Garbage Collection Algorithm

  WWN Support

  Not supported

  Device Sleep Mode Support

  Yes

  Internal Storage

  Samsung V-NAND 3-bit MLC
• General
  Average Power Consumption (system level)

  *Average: 5.5 W*Maximum: 8.5 W (Burst mode)* Actual power consumption may vary depending on system hardware & configuration

  Power consumption (Idle)

  Max. 55 mW * Actual power consumption may vary depending on system hardware & configuration

  Reliability (MTBF)

  1.5 Million Hours Reliability (MTBF)
• Environmental Specs
  Operating Temperature

  0 – 70 ℃ Operating Temperature

  Shock

  1,500 G & 0.5 ms (Half sine)
• Form Factor
  Product

  M.2 (2280)
• Software
  Management SW

  Magician Software for SSD management
• Special Feature
• Encryption Support

  AES 256-bit Encryption (Class 0)TCG/Opal IEEE1667 (Encrypted drive)
• Environment
  Allowable Voltage

  3.3 V ± 5 % Allowable voltage
