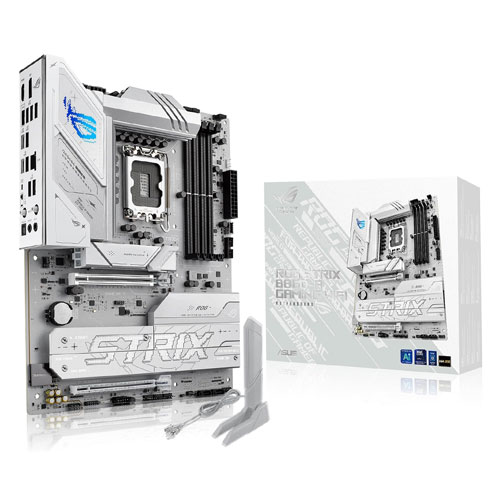

ASUS ROG STRIC B860-A GAMING WI-FI (DDR5) BRAND NEW MOTHERBOARD ( 3 YEARS WARRANTY )
Roll over image to zoom in
Cash Price Rs:110,000.00
or up to 4 X Rs:29,425.00 with
Rs: 123,200.00
Installment Plans
Monthly Rs.
5,270.83
Monthly Rs.
5,454.17
Monthly Rs.
10,358.33
Monthly Rs.
4,002.78
Monthly Rs.
5,270.83
Monthly Rs.
4,277.78
or 3 X Rs: 41,066.67 with
| Model | ROG STRIX B860-A GAMING WIFI |
| CPU | Support Intel® Core™ Ultra Processors (Series 2)* |
| Supports Intel® Turbo Boost Technology 2.0 and Intel® Turbo Boost Max Technology 3.0** | |
| * Refer to https://www.asus.com/support/download-center/ for CPU support list. | |
| ** Intel® Turbo Boost Max Technology 3.0 support depends on the CPU types. | |
| Chipset | Intel® B860 Chipset |
| Memory | 4 x DIMM slots, max. 256GB, DDR5 |
| Supports up to 8600+MT/s (OC), Non-ECC Un-buffered ,Clocked Unbuffered DIMM (CUDIMM)* | |
| Dual channel memory architecture | |
| DIMM Fit | Supports Intel® Extreme Memory Profile (XMP) memory module |
| ASUS Enhanced Memory Profile III(AEMPIII) | |
| * Supported memory types, data rate (speed), and number of DRAM modules vary depending on the CPU and memory configuration, for more information please refer to CPU/Memory Support list under the Support tab of product information site or visit https://www.asus.com/support/download-center/. | |
| ** Non-ECC, un-buffered DDR5 memory supports On-Die ECC function. | |
| Graphics | 1 x DisplayPort** |
| 1 x HDMI™ port*** | |
| 1 x USB4® (20Gbps) ports support USB | |
| Type-C® display outputs**** | |
| * Graphics specifications may vary between CPU types. Please refer to www.intel.com for any updates. | |
| ** Supports max. 8K@30Hz as specified in DisplayPort 1.4. | |
| *** Supports 4K@60Hz as specified in HDMI 2.1. | |
| **** Supports max. 4K@60Hz as specified in DisplayPort 1.4a. | |
| **** In USB4® mode, supports up to 4K@60Hz, | |
| maximum total bandwidth up to 23.8Gbps, for resolution support please check DisplayPort 1.4 specs. In DP alt mode, supports up to UHBR10. | |
| ***** VGA resolution support depends on processors’ or graphic cards’ resolution. | |
| ******While installing the operating system, please ensure that your monitor is connected to the HDMI port on the back I/O panel or to a discrete graphics card. | |
| Expansion Slots | Intel® Core™ Ultra Processors (Series 2) |
| 1 x PCIe 5.0 x16 slot | |
| Intel® B860 Chipset | |
| 1 x PCIe 4.0 x16 slot (supports x4 mode)* | |
| * M.2_4 slot shares bandwidth with | |
| PCIEX16(G4). When PCIEX16(G4) slot is operating, M.2_4 will be disabled. | |
| – To ensure compatibility of the device | |
| installed, please refer to https://www.asus.com/support/download-center/ for | |
| the list of supported peripherals. | |
| Storage | Total supports 4 x M.2 slots and 4 x SATA |
| 6Gb/s ports* | |
| Intel® Core™ Ultra Processors (Series 2) | |
| M.2_1 slot (Key M), type 2242/2260/2280 | |
| (supports PCIe 5.0 x4 mode) | |
| Intel® B860 Chipset | |
| M.2_2 slot (Key M), type 2280 (supports | |
| PCIe 4.0 x4 mode) | |
| M.2_3 slot (Key M), type 2280/22110 | |
| (supports PCIe 4.0 x4 mode) | |
| M.2_4 slot (Key M), type 2280 (supports | |
| PCIe 4.0 x4 mode)** | |
| 4 x SATA 6Gb/s ports | |
| * Intel® Rapid Storage Technology supports | |
| SATA RAID 0/1/5/10. | |
| ** M.2_4 slot shares bandwidth with | |
| PCIEX16(G4). When PCIEX16(G4) slot is operating, M.2_4 will be disabled. | |
| Ethernet | 1 x Intel® 2.5Gb Ethernet |
| ASUS LANGuard | |
| Wireless & Bluetooth | Wi-Fi 7* |
| 2×2 Wi-Fi 7 (802.11be) | |
| Supports 2.4/5/6GHz frequency band** | |
| Supports Wi-Fi 7 160MHz bandwidth, up to 2.9Gbps transfer rate. | |
| Bluetooth® v5.4*** | |
| *Wi-Fi features may vary depending on the operating system | |
| For Windows 11, Wi-Fi 7 will require 24H2 or later version for full functions, Windows 11 21H2/22H2/23H2 only support Wi-Fi 6E. | |
| For Windows 10, please note that no driver is available , please refer to the Wi-Fi chipset vendor’s website for details. | |
| ** Wi-Fi 6GHz frequency band and bandwidth regulatory may vary between countries. | |
| *** The Bluetooth® version may vary, please refer to the Wi-Fi module manufacturer’s website for the latest specifications. | |
| USB | Rear USB (Total 10 ports) |
| 1 x USB4® (20Gbps) port (1 x USB Type-C®) | |
| 3 x USB 10Gbps ports (2 x Type-A + 1 x USB | |
| Type-C®) | |
| 2 x USB 5Gbps ports (2 x Type-A) | |
| 4 x USB 2.0 ports (4 x Type-A) | |
| Front USB (Total 5 ports) | |
| 1 x USB 10Gbps connector (supports USB | |
| Type-C®) | |
| 1 x USB 5Gbps header supports 2 additional | |
| USB 5Gbps ports | |
| 1 x USB 2.0 header supports 2 additional | |
| USB 2.0 ports | |
| * USB Type-C® power delivery output: max. | |
| 5V/3A | |
| Audio | Realtek ALC1220P 7.1 Surround Sound |
| High Definition Audio CODEC* | |
| – Impedance sense for front and rear headphone outputs | |
| – Internal audio Amplifier to enhance the highest quality sound for headphone and speakers | |
| – Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking | |
| – High quality 120 dB SNR stereo playback output and 113 dB SNR recording input (Line-in) | |
| – Supports up to 32-Bit/192 kHz | |
| playback* | |
| Audio Features | |
| – SupremeFX Shielding Technology | |
| – Savitech SV3H712 AMP | |
| – Rear optical S/PDIF out port | |
| – Premium audio capacitors | |
| – Dedicated audio PCB layers | |
| – Audio cover | |
| * Due to limitations in HDA bandwidth, 32-Bit/192 kHz is not supported for 7.1 Surround Sound audio. | |
| ** A chassis with an HD audio module in the front panel is required to support 7.1 Surround Sound audio output. | |
| Back Panel I/O Ports | 1 x USB4® (20Gbps) port (1 x USB Type-C®) |
| 3 x USB 10Gbps ports (2 x Type-A + 1 x USB Type-C®) | |
| 2 x USB 5Gbps ports (2 x Type-A) | |
| 4 x USB 2.0 ports (4 x Type-A) | |
| 1 x DisplayPort | |
| 1 x HDMI™ port | |
| 1 x Wi-Fi module | |
| 1 x Intel® 2.5Gb Ethernet port | |
| 2 x Audio jacks | |
| 1 x Optical S/PDIF out port | |
| 1 x BIOS FlashBack™ button | |
| 1 x Clear CMOS button | |
| Internal I/O Connectors | Fan and Cooling Related |
| 1 x 4-pin CPU Fan header | |
| 1 x 4-pin CPU OPT Fan header | |
| 1 x 4-pin AIO Pump header | |
| 4 x 4-pin Chassis Fan headers | |
| Power Related | |
| 1 x 24-pin Main Power connector | |
| 2 x 8-pin +12V CPU Power connector | |
| Storage Related | |
| 4 x M.2 slots (Key M) | |
| 4 x SATA 6Gb/s ports | |
| USB | |
| 1 x USB 10Gbps connector (supports USB Type-C® ) | |
| 1 x USB 5Gbps header supports 2 additional USB 5Gbps ports | |
| 1 x USB 2.0 header supports 2 additional USB 2.0 ports | |
| Miscellaneous | |
| 3 x Addressable Gen2 header(s) | |
| 1 x Front Panel Audio header (F_AUDIO) | |
| 1 x 10-1 pin Front System Panel header | |
| 1 x Thermal Sensor header | |
| 1 x Thunderbolt™ (USB4®) header | |
| Special Features | Extreme Engine Digi+ |
| – 5K Black metallic capacitors | |
| ASUS Q-Design | |
| – M.2 Q-Latch | |
| – M.2 Q-Release | |
| – M.2 Q-Slide | |
| – PCIe Slot Q-Release Slim (with PCIe SafeSlot) | |
| – Q-Antenna | |
| – Q-Dashboard | |
| – Q-DIMM | |
| – Q-LED (CPU [red], DRAM [yellow], VGA | |
| [white], Boot Device [yellow green]) | |
| – Q-Slot | |
| ASUS Thermal Solution | |
| – M.2 heatsink backplate | |
| – M.2 heatsink | |
| – VRM heatsink design | |
| ASUS EZ DIY | |
| – BIOS FlashBack™ button | |
| – BIOS FlashBack™ LED | |
| – Clear CMOS button | |
| – CPU Socket lever protector | |
| – ProCool | |
| – Pre-mounted I/O shield | |
| – SafeSlot | |
| – SafeDIMM | |
| Aura Sync | |
| – Addressable Gen2 headers | |
| Software Features | ROG Exclusive Software |
| – ROG CPU-Z | |
| – Dolby Atmos | |
| ASUS Exclusive Software | |
| Armoury Crate | |
| – Aura Creator | |
| – Aura Sync | |
| – Fan Xpert 4 | |
| – GameFirst | |
| – Power Saving | |
| AIDA64 Extreme (60 days free trial) | |
| HWiNFO | |
| ASUS AI Advisor | |
| ASUS DriverHub | |
| ASUS GlideX | |
| TurboV Core | |
| Adobe Creative Cloud 30 Days Free Trial) | |
| Norton 360 for Gamers (60 Days Free Trial) | |
| WinRAR (40 Days Free Trial) | |
| UEFI BIOS | |
| AI Overclocking Guide | |
| ASUS EZ DIY | |
| – ASUS CrashFree BIOS 3 | |
| – ASUS EZ Flash | |
| – ASUS UEFI BIOS EZ Mode | |
| – ASUS MyHotkey | |
| NPU Boost | |
| BIOS | 256 Mb Flash ROM, UEFI AMI BIOS |
| Manageability | WOL by PME, UEFI PXE |
| Accessories | Cables |
| 2 x SATA 6Gb/s cables | |
| Miscellaneous | |
| 1 x ASUS WiFi Q-Antenna | |
| 1 x Cable ties package | |
| 1 x M.2 Q-Latch | |
| 1 x M.2 Q-Slide | |
| 1 x ROG key chain | |
| 1 x ROG Strix stickers | |
| 4 x M.2 rubbers | |
| Documentation | |
| 1 x Quick start guide | |
| Operating System | Windows 11 (22H2 & later) |
| Form Factor | ATX Form Factor |
| 12 inch x 9.6 inch ( 30.5 cm x 24.4 cm ) |
Additional information
| Weight | 12 kg |
|---|
